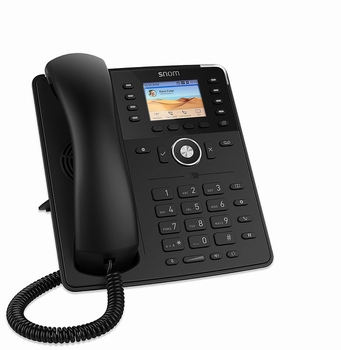

D735 Snom IP telefon


32 funkcijske tipke

High-resolution 2.7 Zoll TFT colour display (6.9cm)


Šifra artikla: D735

D735 Snom IP telefon


  • Detaljno o proizvodu

Display
TFT liquid crystal display (LCD), true colour, backlit
Size (diagonal): 2.7″ (68 mm)
Size (W × H) 54 mm × 41 mm
Resolution: 320 × 240 pixel

13 LED indicators
Call status indication:
1 red LED
Message waiting indication (MWI):
1 red LED
Function key status indication:
8 multicolour LEDs
Audio key status indication:
3 LEDs (1 red / 2 green)
43 hard keys in total
12 keys (standard ITU telephone keypad)
5-way navigation key
4 context-sensitive function keys

Programmable function keys
8 SmartLabel keys
(with multicolour LED)
Key mapping of up to 32 functions (8 keys × 4 pages)

5 dedicated audio keys
Mute
(with red LED)
Speakerphone
(with green LED)
Headset
(with green LED)
Volume + / -
(rocker)

10 dedicated function keys
Ok, Cancel, DND, Message (with red LED), Directory,Menu, Transfer, Hold, ,PFK page (rocker)

Expansion module connection via USB port for up to 3 × D7 / D7C1
